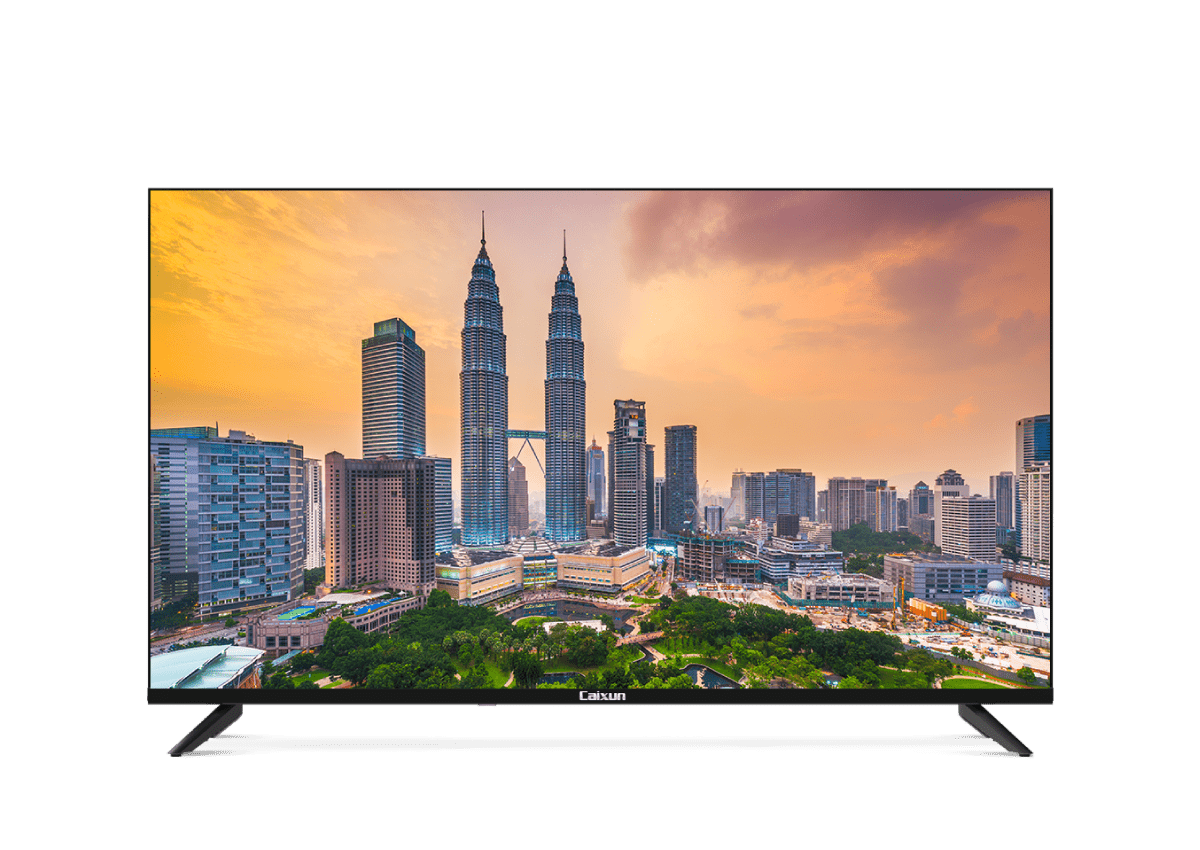

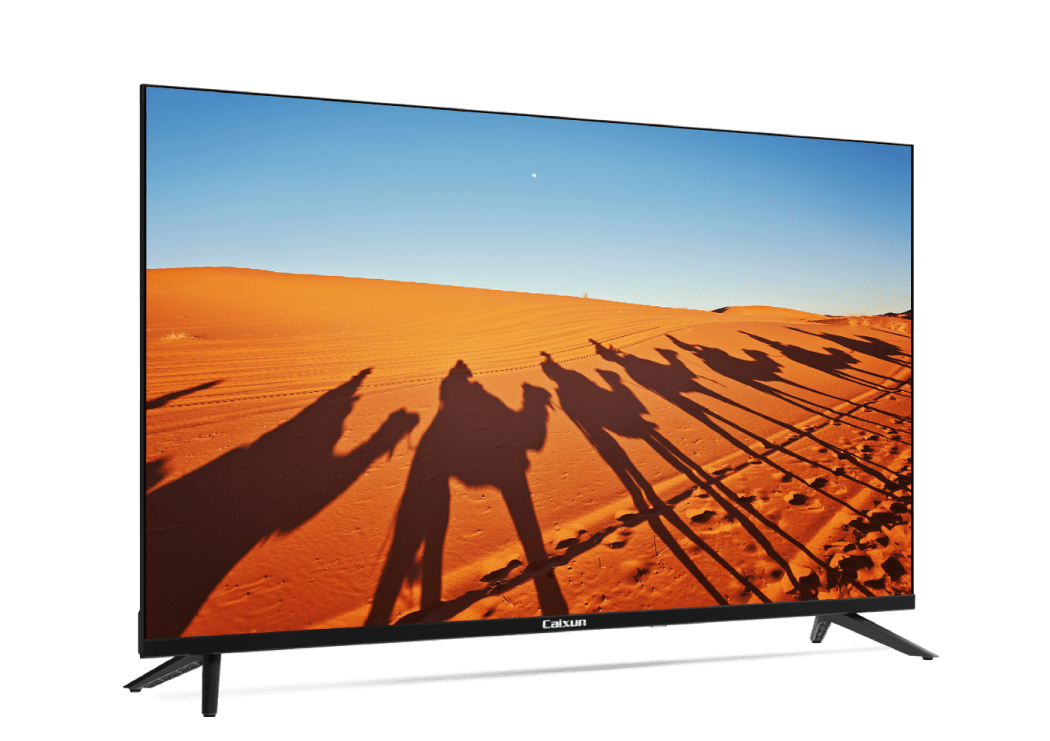

Narrow Frame Design
Caixun Basic TV adopts narrow frame design technology.


Rich Interface, More Application
Equipped with a variety of interface types, you can connect multiple devices at the same time to perform more functions.

COAXIAL *1
Connect the SPDIF receiver

PC Audio Input *1
PC Analog Signal Input

HDMI *3
Digital signal input from HDMI video

VGA Input *1
VGA input & audio input when VGA input

ANT 75 *1
Connect the antennal / caddle TV input

USB Input *2
Connect a USB device here to play its media files or to record programs via the PVR function

YPbPr Input
Connect to your composite terminal of your DVD / VCR

AV Input *1
External AV signal input and relevant right / left sound channel
Terms & Conditions
*The products shown on this page are for reference only and may not reflect the actual product. The colour and finish of the actual product may vary slightly in different environments.
*The images of features shown on this page are for reference only and may not reflect the actual product or its configuration.
*The products shown on this page are for reference only and may not reflect the actual product. The colour and finish of the actual product may vary slightly in different environments.
*The images of features shown on this page are for reference only and may not reflect the actual product or its configuration.

Basic TV
Basic TV 40”
Basic TV 40”
Dimension (mm)
Inches | 40" |
Product Dimension W * H * D | 903.4 x 517.4 x 78.1 |
Carton Dimension W * H * D | N/A |
Weight (kgs)
Gross Weight | 7.3 |
Net Weight | 5.7 |
Hardware & Software Infomation
Operating System | Basic TV |
WIFI | N/A |
Bluetooth | N/A |
RAM | N/A |
Internal Storage | N/A |
CPU | N/A |
GPU | N/A |
Display
Aspect Ratio | 16:9 |
Resolution | 1920 x 1080 |
Display Colors | 16.7m |
Antenna and Broadcasting
Analog TV | NTSC (PAL/SECAM) |
Digital TV | ATSC (DVB-T2) |
Audio
Dolby Digital Plus | N/A |
MultiStream Decoder | N/A |
Stereo Sound | YES |
Equalizer | YES |
Built in and Supporting Apps
Chromecast | N/A |
Ok Google | N/A |
Ports
RJ45 | 1 |
OPTICAL | 1 |
EARPHONE | N/A |
HDMI | 3 |
AV IN | 1 |
TV(DVB-S/S2) | 1 |
TV(DVB-C/T/T2) | 1 |
USB | 2 |
CI | 1 |
VGA(D-Sub 15pin) | 1 |
SCART | N/A |
Display Port | N/A |
COAXCAL | 1 |
Rating and Voltage
Power consumption(Operation) | 90W |
Power consumption(Standby) | ≦0.5W |
Power Requirement | AC 100-240 50/60Hz |
Package Contents
User Manual | 1 Pcs |
Base Stand | 1 Pair |
Remote Control | 1 Pcs |
Battery | 1 Pair |
